Developing with Polymode

Polymode doesn't keep its modes in a single emacs buffer but in several indirect buffers, as many as different modes are there in a file. Consequently, polymode is as fast as switching emacs buffers because it never re-installs major modes like other multi-modes do. Dave Love's multi-mode.el gets full credit for this idea.

• Glossary of Terms
• Class Hierarchy
  • Polymodes
  • Chunkmodes
• Defining New Polymodes
  • One Predefined Innermode
  • Multiple Predefined Innermodes
  • Multiple Automatically Detected Innermodes
• Visually debugging polymodes
• Defining Literate Programming Backends
  • Weavers
  • Exporters
  • Tanglers
• Internals
  • API
  • Initialization of polymodes

Glossary of Terms

Assume the following org-mode file:

* emacs lisp code block

#+begin_src emacs-lisp :var tbl='()
 (defun all-to-string (tbl)
    (if (listp tbl)
        (mapcar #'all-to-string tbl)
      (if (stringp tbl)
          tbl
        (format "%s" tbl))))
  (all-to-string tbl)
#+end_src

• span - a syntactically homogeneous fragment of text. In the org-mode example the org span starts at the beginning of the file ends with (but does not include) #+begin_src. Header span is #+begin_src emacs-lisp :var tbl='(). The emacs lisp code span follows next. #+end_src is the tail span.
• sub-mode - an emacs mode from inside a span.
• chunk is a well delimited fragment of text that consists of one or more spans. Most common types of chunks are bchunk (= body chunk) and hbtchunk (= head + body + tail spans). In the above example, org-mode emacs-lisp chunk starts with #+begin_src and ends with #+end_src (inclusively).
• polymode is overloaded with three concurrent meanings which we will disambiguate from the context:
  1. Like emacs plain modes, polymodes represent an abstract idea of a collection of related functionality that is available in emacs buffers.
  2. Like emacs modes, polymodes are functions that install a bunch of functionality into emacs buffer. You can use polymodes just as any other emacs major or minor mode.
  3. Polymodes are objects of pm-polymode class. The functionality of each polymode is completely characterized by this object and the methods that act on it. During initialization this object is cloned and its copy is stored in a buffer-local variable pm/polymode. There are several types of polymode objects. See hierarchy below.
• chunkmode refers to one of the following:
  1. An abstract idea of the functionality available in chunks of the same type (e.g. org-mode chunk, emacs-lisp chunk).
  2. Emacs mode function (e.g. org-mode), or a set of such functions (e.g. pm-head-tail-mode for header/tail + emacs-lisp-mode for the chunk's body) what instantiate all of the required functionality of the plain emacs modes embodies by that chunk.
  3. Object of pm-chunkmode class. This object represents the behavior of the chunkmode and is stored in a buffer-local variable pm/chunkmode. There are several types of chunkmode objects. See hierarchy below.
• hostmodes and innermodes Chunkmodes could be classified into host and inner chunkmodes (hostmodes and innermodes in short). In the above example org chunkmode is a hostmode and emacs-lisp chunkmode is an innermode.

It is easy to think of the chunkmodes as inter-weaved threads. Host chunkmode is a stretched canvas. Each inner chunkmode is a thread weaved into the hostmode. Visible fragments of the each thread are chunks.

In light of the above metaphor, it is worth emphasizing the distinctions between chunks and chunkmodes. Chunks are fragments of text and there might be multiple chunks of the same type in the buffer. In contrast, there is only one chunkmode of some specific type and multiple chunks of this type "share" this chunkmode.

Class Hierarchy

Polymode package uses eieio to represent its objects. The root class for all polymode classes is eieio-instance-inheritor which provides prototype based inheritance (in addition to class based). This means that objects instantiated from polymode classes can be cloned in order to dynamically create a hierarchy of customizable objects. There are a bunch of such objects already defined, you can investigate those in polymodes, hostmodes, innermodes customization groups.

As polymode uses indirect buffers to implement the multi-mode, storing mode functionality in objects (in contrast to buffer local variables) is very convenient strategy for moving stuff around.

Current polymode class hierarchy:

  +--eieio-instance-inheritor
  |    +--pm-root
  |         +--pm-polymode
  |         |    +--pm-polymode-multi
  |         |    |    +--pm-polymode-multi-auto
  |         |    +--pm-polymode-one
  |         |
  |         +--pm-chunkmode
  |         |    +--pm-hbtchunkmode
  |         |    |    +--pm-hbtchunkmode-auto
  |         |    +--pm-bchunkmode
  |         |
  |         +--pm-weaver
  |         |    +--pm-shell-weaver
  |         |    +--pm-callback-weaver
  |         +--pm-exporter
  |              +--pm-shell-exporter
  |              +--pm-callback-exporter

Using Help with EIEIO: Each eieio class has a corresponding constructor whose docstring contains a complete description of the class. In emacs 24.4 or higher you can use C-h f pm-foo RET to inspect the documentation of the class. Alternatively either use M-x describe-class pm-foo or lookup the class definition directly in polymode-classes.el.

Polymodes

As noted earlier, each polymode is a function that walks and quacks like standard emacs major mode. Hence, things like poly-XXX-mode-map and poly-XXX-mode-hook work just as expected. Plymode functions are defined with define-polymode and can be used in place of emacs standard major or minor modes.

Each polymode is represented by a customizable pm-polymode object which fully characterizes its behavior. During the initialization this config object is cloned and installed in every new buffer.

The most important slot of root config class pm-polymode is:

• :hostmode - name of the chunkmode object (typicaly of class pm-bchunkmode, see Chunkmodes).

Currently there are three subclasses of pm-polymode:

• pm-polymode-one - used for polymdoes with only one predefined innermode. It extends pm-polymode with one slot - :innermode - which is a name of the inner chunkmode (typically objects of class pm-hbtchunkmode).
• pm-polymode-multi - used for polymodes with multiple predefined inner modes. It extends pm-polymode with :innermodes list that contains names of predefined pm-hbtchunkmode objects.
• pm-polymode-multi-auto - used for polymodes with multiple dynamically discoverable chunkmodes. It extends pm-polymode-multi with :auto-innermode slot (typically an object of class pm-hbtchunkmode-auto).

Chunkmodes

Most important user visible slots of the root class pm-chunkmode are:

• :mode - symbol of corresponding emacs plain mode (e.g. html-mode, latex-mode etc)
• :indent-offset, :font-lock-narrow, :adjust-faceetc - configuration options.

Currently, there are three sub classes of pm-chunkmode:

1. pm-bchunkmode - represents the mode of plain body chunks (bchunks). These objects are commonly used to represent functionality in host chunks and are instances of pm-bchunkmode. Currently it doesn't add any new slots to its parent class pm-chunkmode.

2. hbtchunkmode - represents the mode of composite head-body-tail chunks. These objects are commonly used to represent the functionality of the innermost chunks of the buffer. pm-hbtchunkmode extends pm-chunkmode with additional slots, most importantly:

   • head-mode and tail-mode: names of emacs-modes for header/tail of the chunk
   • head-reg and tail-reg: regular expressions or functions to detect the header/tail

3. pm-hbtchunkmode-auto - represents chunkmodes for which the mode type is not predefined and must be computed at runtime. This class extends pm-hbtchunkmode with retriver-regexp, retriver-num and retriver-function which can be used to retrive the mode name from the header of the inner chunk.

Defining New Polymodes

In order to define a new polymode poly-cool-mode you first have to define or clone a chunkmode object to represent the hostmode, and one or more chunkmodes to represent innermodes. Then define the polymode object pm-poly/cool pointing to previously defined host and inner chunkmodes.

There are a lot of polymodes, hostmodes and innermodes already defined. Please reuse those whenever possible.

One Predefined Innermode

This is a simplified version of poly-noweb-mode from poly-noweb.el. First define the latex hostmode:

(defcustom pm-host/latex
  (pm-bchunkmode "latex" :mode 'latex-mode)
  "Latex host chunkmode"
  :group 'hostmodes
  :type 'object)

Then define the noweb innermode:

(defcustom  pm-inner/noweb
  (pm-hbtchunkmode "noweb"
                   :head-reg  "<<\\(.*\\)>>="
                   :tail-reg    "\\(@ +%def .*\\)$\\|\\(@[ \n]\\)")
  "Noweb typical chunk."
  :group 'innermodes
  :type 'object)

Finally, define the pm-polymode object and the coresponding polymode function:

(defcustom pm-poly/noweb
  (pm-polymode-one "noweb"
                   :hostmode 'pm-host/latex
                   :innermode 'pm-inner/noweb)
  "Noweb typical polymode."
  :group 'polymodes
  :type 'object)

(define-polymode poly-noweb-mode pm-poly/noweb)

The hostmode pm-host/latex from above is already defined in poly-base.el, so you need not have declared it.

Now, let's assume you want a more specialized noweb mode, say noweb with R chunks. Instead of declaring root hostmodes and innermodes again you should clone existing noweb root object. This is how it is done (from poly-R.el):

(defcustom pm-inner/noweb+R
  (clone pm-inner/noweb :mode 'R-mode)
  "Noweb innermode for R"
  :group 'innermodes
  :type 'object)

(defcustom pm-poly/noweb+R
  (clone pm-poly/noweb :innermode 'pm-inner/noweb+R)
  "Noweb polymode for R"
  :group 'polymodes
  :type 'object)

(define-polymode poly-noweb+r-mode pm-poly/noweb+R :lighter " PM-Rnw")

That's it. You simply had to define new innermode and polymode by cloning from previously defined objects and adjusting :mode and :innermode slots respectively.

Multiple Predefined Innermodes

No examples yet. Web-mode would probably qualify.

Multiple Automatically Detected Innermodes

This is an example of markdown polymode (from poly-markdown.el).

;; 1. Define hostmode object
(defcustom pm-host/markdown
  (pm-bchunkmode "Markdown" :mode 'markdown-mode)
  "Markdown host chunkmode"
  :group 'hostmodes
  :type 'object)


;; 2. Define innermode object
(defcustom  pm-inner/markdown
  (pm-hbtchunkmode-auto "markdown"
                     :head-reg "^[ \t]*```[{ \t]*\\w.*$"
                     :tail-reg "^[ \t]*```[ \t]*$"
                     :retriever-regexp "```[ \t]*{?\\(\\(\\w\\|\\s_\\)*\\)"
                     :font-lock-narrow t)
  "Markdown typical chunk."
  :group 'innermodes
  :type 'object)

;; 3. Define polymode object
(defcustom pm-poly/markdown
  (pm-polymode-multi-auto "markdown"
                        :hostmode 'pm-host/markdown
                        :auto-innermode 'pm-inner/markdown
                        :init-functions '(poly-markdown-remove-markdown-hooks))
  "Markdown typical configuration"
  :group 'polymodes
  :type 'object)

;; 4. Define polymode function
(define-polymode poly-markdown-mode pm-poly/markdown)

Visually Debugging Polymodes

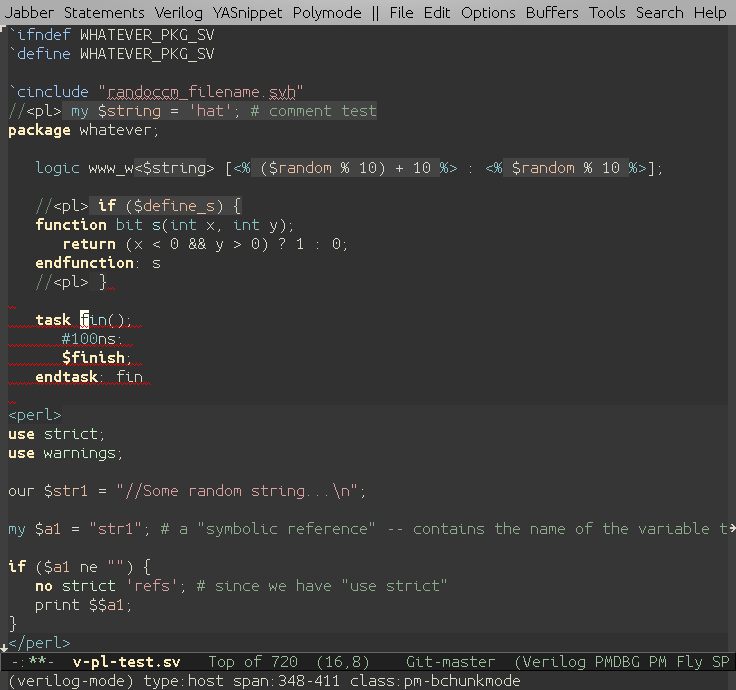

After defining polymodes you can visually inspect if the polymode does what you intended by activating globalized minor pm-debug minor mode with M-x pm-debug-mode. When pm-debug-mode is active the current span will be highlighted and brief info displayed in the minibuffer.

Currently defined commands are:

• M-n M-f Toggle font-locking (pm-debug-toggle-fontification)
• M-n M-h Map through all spans and briefly blink each span (pm-debug-map-over-spans-and-highlight)
• M-n M-i Highlight current span and display more info (pm-debug-info-on-span)

Defining Backends

Weavers

todo

Exporters

todo

Tanglers

todo

Internals

Warning: Following description is subject to change and might not be up-to-date.

API

All API classes and methods are named with pm- prefix.

Buffer local objects:

• pm/type
• pm/chunkmode
• pm/polymode

Generics:

• pm-initialize
• pm-get-buffer-create
• pm-select-buffer
• pm-get-span
• pm-indent-line
• pm-get-adjust-face

Utilities:

• pm-get-innermost-span
• pm-map-over-spans
• pm-narrow-to-span

Initialization of polymodes

Note: This description is obsolete. Internals have changed.

When called, poly-XXX-mode (created with define-polymode) clones pm-poly/XXX object and calls pm-initialize generic on it. The actual initialization depends on concrete type of the pm-polymode object but these are the common steps:

1. assign the config object into local pm/polymode variable
2. clone the pm-chunkmode object specified by :hostmode slot of pm-polymode
3. initialize hostmode by running the actual function in :mode slot of the hostmode object.
4. store hostmode object into local pm/chunkmode variable
5. set local variable pm/type to 'host
6. run pm-polymode's :init-functions as normal hooks
7. run pm--setup-buffer which is common setup function used internally to set font-lock and a range of other stuff
8. run poly-XXX-mode-hook.

Discovery of the spans is done by pm-select-buffer generic which is commonly called first by jit-lock. pm-select-buffer fist checks if the corresponding pm-chunkmode object (and associated indirect buffer) has been already created. If so, pm-select-buffer simply selects that buffer. Otherwise, it calls pm-get-buffer-create generic which, in turn, creates pm-chunkmode object and the associated indirect buffer.
